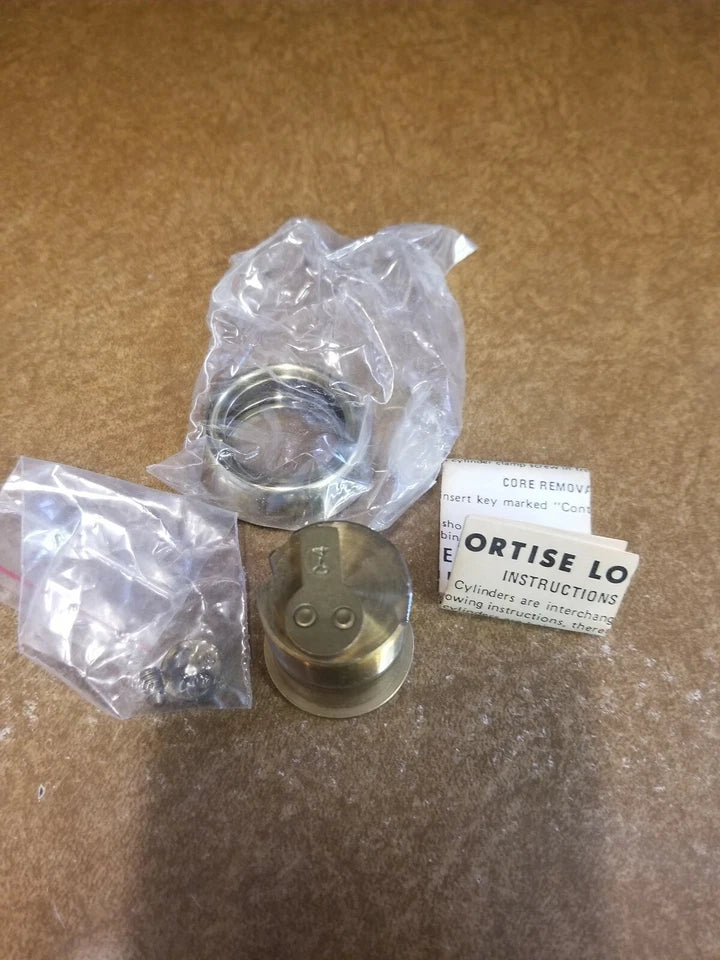

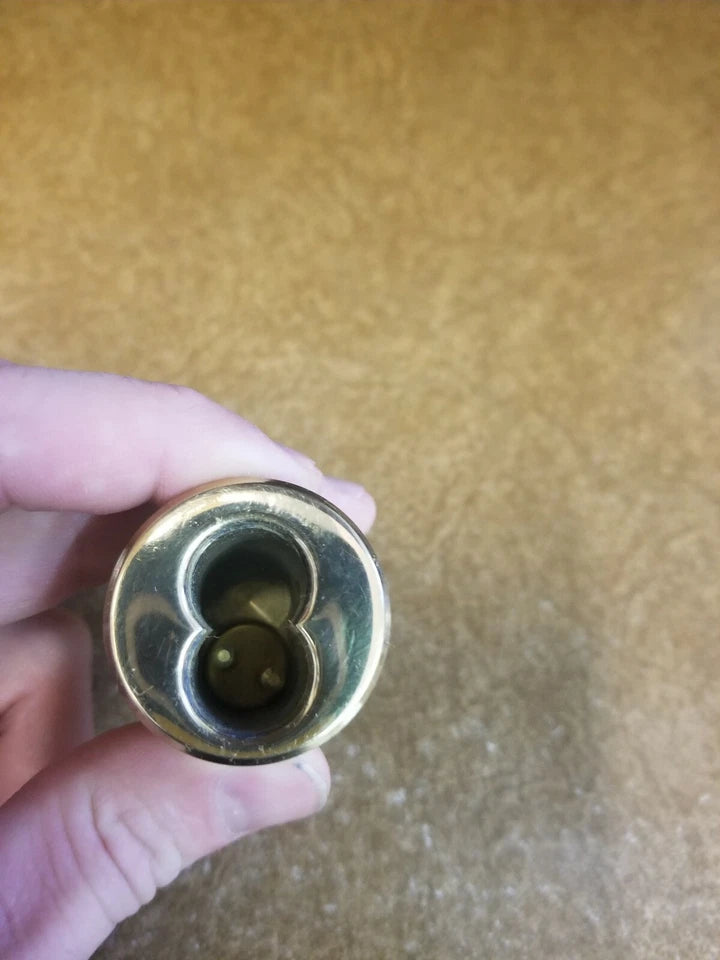

BEST IC MORTISE CYLINDER HOUSING Adams Rite CAM 605 Finish

Housing sold less core

Standard mortise applications require use of BEST’s 1E series cylinders with standard 1E-C4 cam. BEST cylinders may be altered to function with other manufacturers' locks by use of different cams and different cylinder rings. Special cylinder variations are available for most applications.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing.

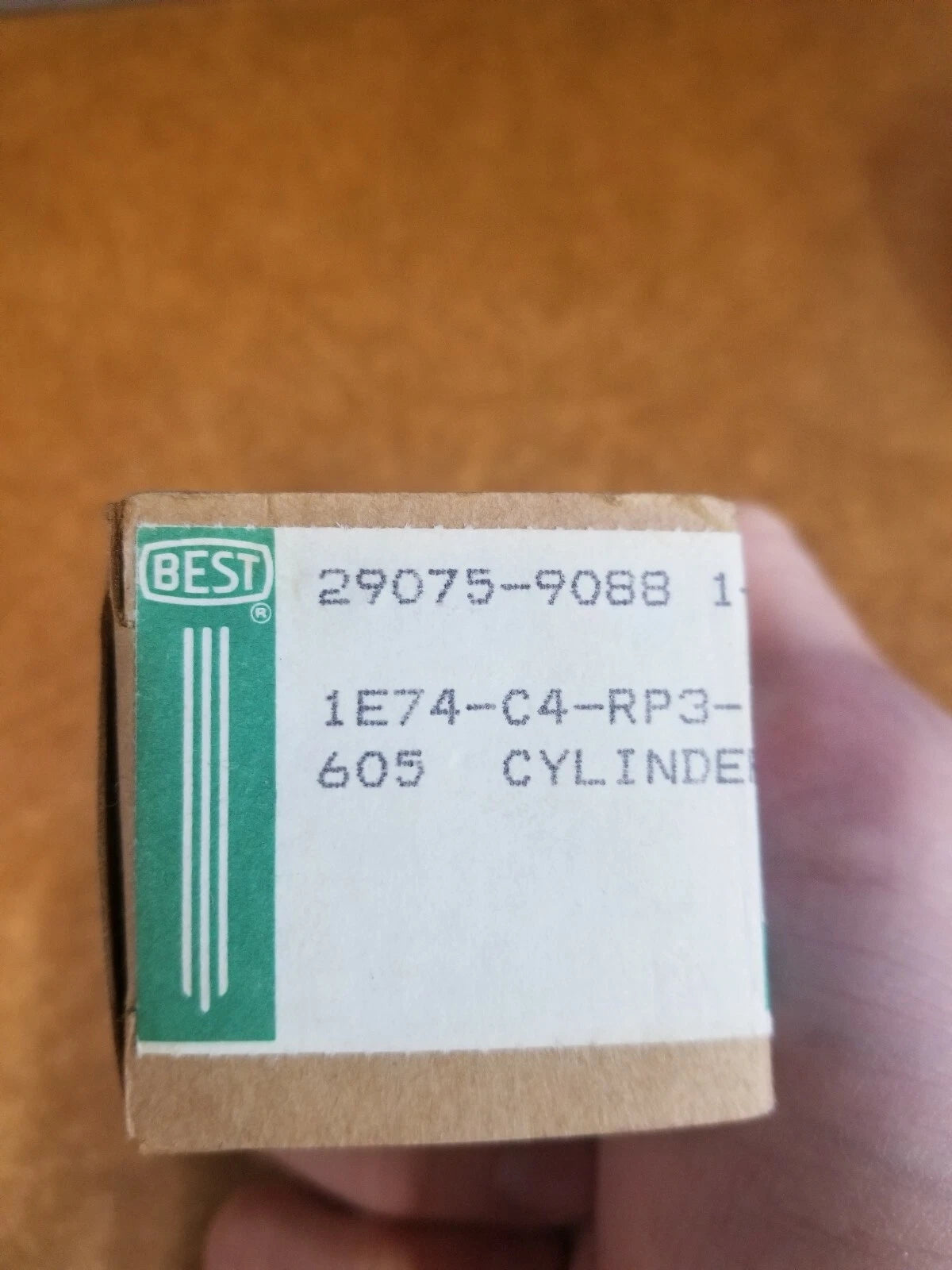

1E-74 part number
1-1/4" dimension
1-7/8" to 2-1/2" door thickness

Cylinder diameter — 1-5/32"

Original instructions included
